Heavy Duty PVC Edge Trim – Self-Gripping 1–4mm Panel Edging

Heavy Duty PVC Edge Trim – Self-Gripping 1–4mm Panel Edging

Normale prijs $7.00 USD
Normale prijs Aanbiedingsprijs $7.00 USD
Aanbieding Uitverkocht
Belastingen inbegrepen. Verzendkosten worden berekend bij de checkout.
  • Sold per metre — quantity 5 = 5m continuous length
  • Minimum Panel Thickness:  1mm
  • Maximum Panel Thickness:  4mm
  • 10mm x 14.5mm
  • Heavy-duty PVC with internal steel self-gripping carrier
  • Calculated at checkout
Aantal

Our Heavy Duty PVC Edge Trim is a durable, flexible edging profile designed to protect and finish exposed panel edges in automotive, caravan, marine, industrial and general fabrication applications.

Manufactured from high-quality PVC with an internal steel gripping carrier, this robust edge trim provides a secure push-on fit for suitable panels between 1mm and 4mm thick, without requiring additional adhesive when correctly fitted.

Larger and more substantial than our standard PVC edging profiles, this heavy-duty trim is particularly useful for applications requiring additional edge protection and a neat, professional finish.

Available in black, white, red, blue and grey, the trim can be selected to complement different vehicle interiors, exterior panels and fabrication projects.

Key Features & Benefits

Heavy-Duty Edge Protection

The robust PVC construction helps protect exposed panel edges from everyday knocks, abrasion and general wear.

It also provides a smooth finishing surface, helping cover sharp or unfinished edges on suitable panels.

Secure Self-Gripping Installation

The internal steel carrier provides gripping strength, allowing the trim to attach to compatible panel edges without the need for separate adhesive.

The flexible profile can follow suitable curves and contours while maintaining a secure fit when the correct panel thickness and profile are selected.

Five Colour Options

Choose from black, white, red, blue or grey to suit your application.

The range of available colours makes this trim useful for restoration projects, campervan conversions, marine finishing and decorative edging.

Versatile Indoor & Outdoor Applications

The PVC construction makes this profile suitable for a variety of indoor and outdoor uses, subject to the environmental and mechanical requirements of the installation.

Technical Specifications

Specification Details
Product type Heavy-duty PVC edge trim
Material PVC
Internal carrier Steel reinforcement
Panel fitting range 1–4mm
Fitting method Self-gripping / push-on
Available colours Black, white, red, blue, grey
Unit of sale Per metre, with selected pre-cut options
Maximum continuous coil length 50 metres
Adhesive required Not normally required for a correctly matched fit

Manufacturing tolerance: Due to PVC production tolerances and temperature variations, external profile dimensions may vary by approximately ±1mm. If precise measurements are essential, please contact us to confirm the dimensions of current stock before ordering.

Suitable Applications

Automotive & Vehicle Edge Protection

This heavy-duty PVC trim can be used to finish and protect suitable exposed edges on cars, vans, commercial vehicles and vehicle restoration projects.

Its flexible, self-gripping design makes it useful for compatible interior panels, bodywork edges and vehicle finishing applications.

Caravan & Campervan Conversions

For caravan and campervan projects, the trim provides a practical edging solution for suitable roof panels, access openings, interior finishing and conversion work.

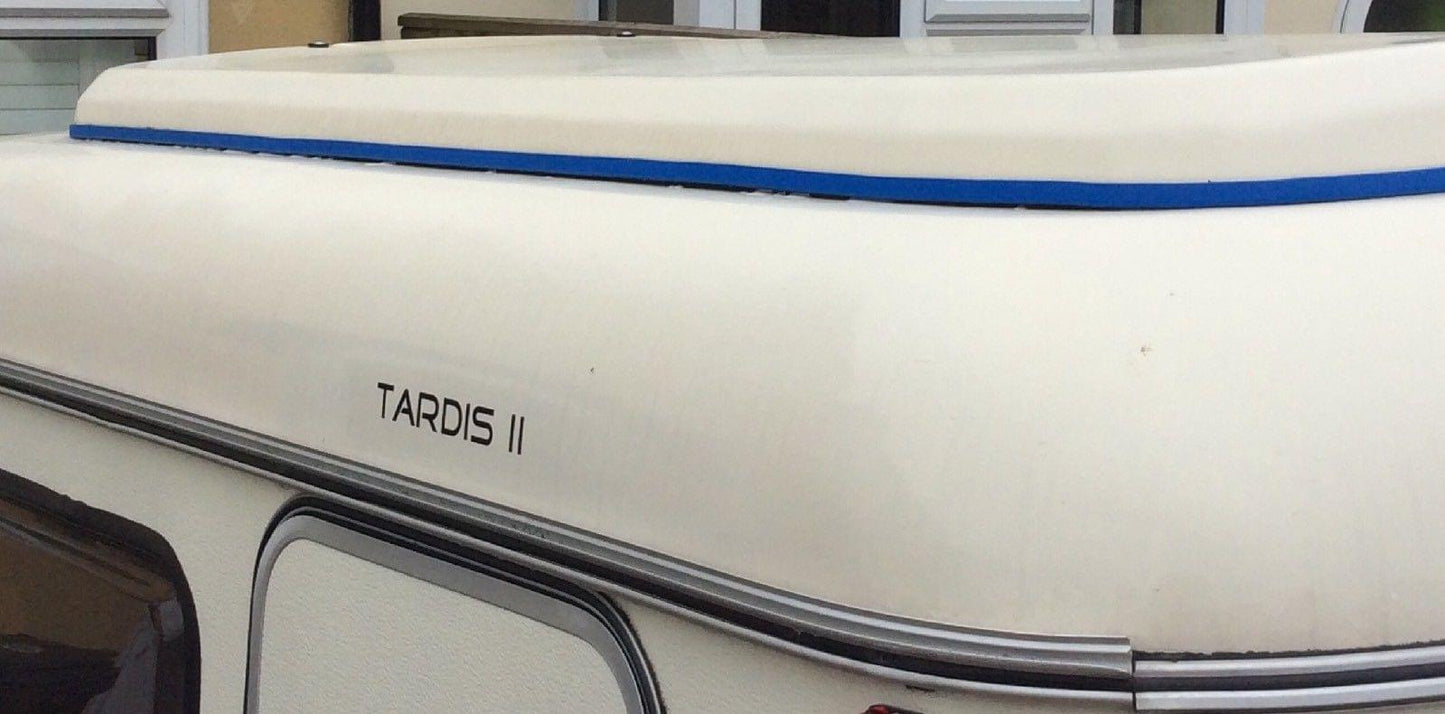

It is also available in a specialist pre-cut option for certain Eriba pop-top roof applications.

Marine & Boat Applications

The PVC edge trim may be used for suitable marine finishing applications, including exposed panel edges, access panels and interior fittings where the profile dimensions and environmental requirements match.

Industrial & Fabrication Applications

This heavy-duty edging is also suitable for compatible machinery panels, fabricated metalwork, furniture, enclosures and general edge protection applications.

How to Measure Your Panel Edge

Before purchasing, measure the thickness of the panel onto which the trim will be fitted.

The gripping channel is designed for suitable panels between 1mm and 4mm thick.

Check the existing panel edge for variations in thickness, bends, coatings or additional materials that may affect the fit.

Where possible, compare the complete profile cross-section with your existing trim or the intended installation.

For curved edges, ensure the profile can follow the required radius without distortion or loss of grip.

Please compare the original profile and fitting arrangement before ordering. Our TSEC1723 profile may be an alternative for certain sealing applications, subject to compatibility.

How to Fit Heavy Duty PVC Edge Trim

Begin by ensuring the panel edge is clean and free from dirt, debris or sharp protrusions that could interfere with installation.

Position the trim over the panel edge and carefully press the gripping channel into place.

Work progressively along the fitting area, ensuring the profile remains evenly seated without excessive stretching or twisting.

The internal steel carrier provides the gripping action, so additional adhesive is not normally necessary when the trim is correctly matched to the panel thickness.

Once installed, check the full length for secure seating, particularly around bends and corners.

How to Order

Our Heavy Duty PVC Edge Trim is available by the metre, with a maximum continuous coil length of 50 metres.

Select your preferred colour and enter the number of metres required in the quantity box.

For example, quantity 5 of the per-metre option represents 5 metres supplied in one continuous length, where available.

For larger requirements, select the appropriate coil option if offered or contact our team to discuss supply arrangements.

Please check the selected colour, length option and panel fitting dimensions before ordering.

Explore More Rubber Seals & Edge Trims

Looking for other protective edging or rubber sealing profiles?

Browse our Edge Trims Collection for alternative PVC and rubber edging solutions.

Not sure whether this profile is suitable for your caravan or motorhome?

Read our How to Identify and Replace Caravan Window Rubber Seals guide for advice on measuring existing glazing profiles and selecting a replacement.

You can also browse our Caravan, Campervan & Motorhome Rubber Seals collection or use our Find Your Perfect Seal tool to explore other suitable profiles.

If you're uncertain about the fitting dimensions, contact our team before ordering.
