Small EPDM Rubber Edge Trim | Fits 1–3mm Panels
Small EPDM Rubber Edge Trim | Fits 1–3mm Panels
- 1m / 50m
- Minimum Panel Thickness: 1mm
- Maximum Panel Thickness: 3mm
- 14.5mm x 14mm
- EPDM
- UK Mainland from £5.40
Kan beschikbaarheid voor afhalen niet laden

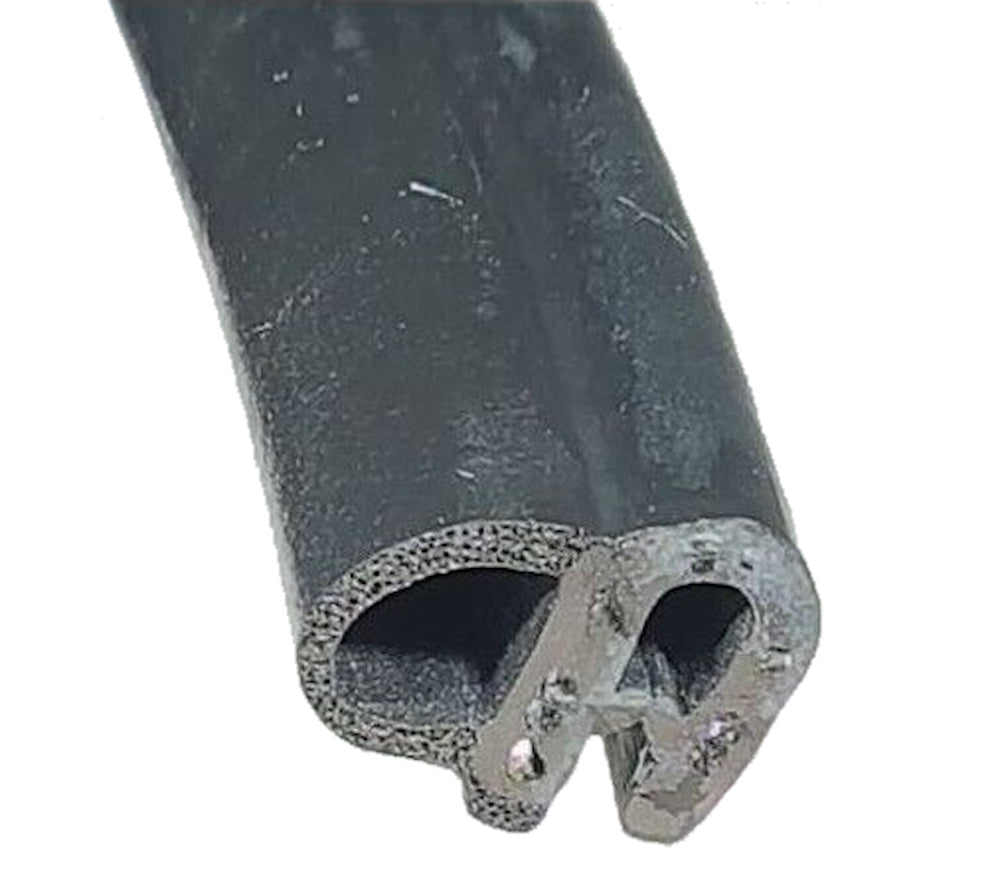

Our Small EPDM Self-Grip Rubber Edge Trim Seal is a compact, flexible weathersealing profile designed to provide both protective edging and a compressible rubber seal in one practical solution.
Manufactured from durable EPDM rubber, this versatile profile combines a self-gripping U-shaped channel with a flexible hollow sealing bulb, helping protect exposed panel edges while creating a weather-resistant barrier between adjoining surfaces.
Designed to fit compatible panel thicknesses between 1mm and 3mm, the rubber seal is ideal for automotive, caravan, campervan, marine, industrial and general sealing applications.
With an overall profile width of 11mm, this compact rubber edge trim is particularly useful for installations where a larger sealing profile would be unsuitable.
When correctly fitted, the compressible sealing bulb helps reduce water ingress, draughts, dust, vibration and unwanted rattling around suitable doors, hatches and access panels.
Key Features & Benefits
Compact Self-Gripping Design
The rubber profile features a U-shaped gripping channel designed to fit securely over compatible panel edges between 1mm and 3mm thick.
The push-on design provides a convenient installation method, allowing the trim to follow suitable curves and contours while maintaining a neat, professional finish.
Where additional retention is required, a suitable adhesive may be used, provided it is compatible with EPDM rubber and the mounting surface.
Flexible Hollow Sealing Bulb
The integrated hollow rubber bulb provides a compressible sealing surface that makes contact with an adjoining door, hatch or panel.
When the correct sealing gap and compression are achieved, the profile helps reduce the entry of water, air and dust while cushioning contact between adjoining surfaces.
Durable EPDM Rubber Construction
Manufactured from EPDM rubber, this edge trim offers good resistance to weathering, ozone and ultraviolet exposure.
Its flexible construction makes it suitable for a wide range of indoor and outdoor applications, subject to the specific installation conditions.
Protective Edge Finishing
In addition to its sealing function, the U-shaped gripping section helps cover exposed panel edges, providing a smooth finishing surface and reducing direct contact with unfinished edges.
This makes the profile particularly useful for vehicle restoration, campervan conversions, equipment enclosures and general fabrication projects.
Technical Specifications
| Specification | Details |
|---|---|
| Product type | Self-gripping rubber edge trim with sealing bulb |
| Material | EPDM rubber |
| Colour | Black |
| Overall profile width | 11mm |
| Gripping section height | 12.5mm |
| Gripping section width | 6.9mm |
| Sealing bulb height | 9.6mm |
| Nominal channel opening | 2.5mm |
| Recommended panel fitting range | 1–3mm |
| Fitting method | Push-on / self-gripping |
| Temperature range | −50°C to +130°C |
| Available lengths | Per metre or 50m coil |
| Maximum continuous length | 50 metres |
Important: The 2.5mm channel opening shown on the technical drawing is a nominal profile measurement. The recommended panel fitting range is 1–3mm.
Always compare the complete profile dimensions and required sealing gap with your existing rubber or intended installation before purchasing.
Suitable Applications
Automotive Door, Boot & Bonnet Seals
This compact EPDM rubber edge trim seal may be suitable for compatible car doors, boot openings, bonnets, tailgates and other vehicle sealing applications.
The self-gripping channel provides protective edging around suitable bodywork flanges, while the hollow bulb creates a compressible contact surface when the adjoining panel closes.
It is particularly useful for vehicle restoration and replacement projects where the original rubber profile has become worn, cracked or permanently compressed.
Caravan, Campervan & Motorhome Seals
For suitable caravan and campervan applications, this flexible rubber profile provides a practical sealing solution around doors, access panels, lockers and storage compartments.
Its compact dimensions make it useful for certain conversion projects where space is limited but a compressible weatherseal is still required.
Marine & Boat Applications
The profile may be suitable for certain boat hatches, access panels, lockers and cabin fittings where a flexible rubber seal is required.
For exposed marine environments, always confirm that the material and fitting arrangement are compatible with the intended conditions.
Industrial & Machinery Enclosures
This rubber edge trim can also be used in suitable machinery cabinets, equipment enclosures, fabricated panels and industrial access doors.
The combination of edge protection and a flexible sealing bulb makes it useful for applications requiring a cushioned contact surface and reduced dust or draught ingress.
General DIY & Fabrication
The compact profile is also suitable for consideration in general fabrication, protective edging and custom sealing projects where the panel thickness and cross-sectional dimensions match.
How to Choose the Correct Rubber Edge Trim Seal
Measure Your Panel Thickness
Before ordering, measure the thickness of the panel or mounting flange onto which the rubber will be fitted.
This profile is designed for 1–3mm panel thicknesses, so it's important to confirm that your mounting edge falls within this range.
Check the Profile Dimensions
The rubber profile measures 11mm across its overall width, with a 12.5mm-high gripping section and a 9.6mm-high sealing bulb.
The gripping section is approximately 6.9mm wide, with a nominal internal channel opening of 2.5mm.
Compare these dimensions with the technical drawing and your existing seal to establish whether the profile is suitable.
Check the Sealing Gap
The hollow bulb must make contact with the intended sealing surface when the door, hatch or panel is closed.
Check that sufficient compression can be achieved without placing excessive pressure on the adjoining components or preventing the door from closing correctly.
Consider the Existing Rubber Profile
If replacing an older rubber seal, remember that the original material may have become compressed, hardened or distorted over time.
Where possible, compare the replacement against the original mounting dimensions rather than relying entirely on the shape of the worn rubber.
How to Fit Your Self-Grip Rubber Edge Trim
Before installation, inspect the mounting edge and remove any damaged or deteriorated rubber where appropriate.
Ensure the panel edge is clean and free from dirt, debris, corrosion or loose material that could interfere with fitting.
Position the U-shaped gripping channel over the compatible panel edge and carefully press the rubber into place, working progressively along the required length.
Avoid excessive stretching or twisting, particularly around tight corners, as this may affect the fit and sealing performance.
Where additional retention is required, use an adhesive suitable for EPDM rubber and the mounting surface, following the adhesive manufacturer's instructions.
Once installed, carefully close the adjoining door, hatch or panel and check that the sealing bulb makes consistent contact without interfering with the closing mechanism.
Inspect the completed installation for gaps, uneven seating or excessive compression.
How to Order
Our Small EPDM Self-Grip Rubber Edge Trim Seal is available by the metre or as a complete 50-metre coil, allowing you to select the quantity required for your project.
Per Metre Option
Select the per-metre variant and enter the number of metres required in the quantity box.
For example, quantity 5 represents 5 metres of rubber, supplied in one continuous length where available.
50 Metre Coil
For larger installations, professional use or trade requirements, select the 50-metre coil option.
Each quantity ordered represents one complete 50-metre coil.
The maximum continuous length is 50 metres. Orders exceeding this length may need to be supplied in separate coils.
Please check your selected variant, required length and panel fitting measurements before ordering.
Frequently Asked Questions
What Panel Thickness Does This Rubber Edge Trim Fit?
This profile is designed for compatible panel edges between 1mm and 3mm thick.
Does This Rubber Seal Require Adhesive?
The profile is designed for push-on fitting to compatible panel edges. Additional adhesive may be used where necessary, provided it is suitable for the rubber and mounting surface.
Is This Suitable for Outdoor Applications?
EPDM rubber offers good resistance to weathering, ozone and UV exposure, making it suitable for many outdoor applications where the installation conditions are appropriate.
Can This Rubber Seal Be Cut to Length?
Yes. The flexible rubber profile can be cut to the required length using suitable cutting tools.
Is This a Protective Edge Trim or a Weatherseal?
This product performs both functions. The U-shaped channel provides protective edging, while the hollow rubber bulb creates a compressible sealing surface.
