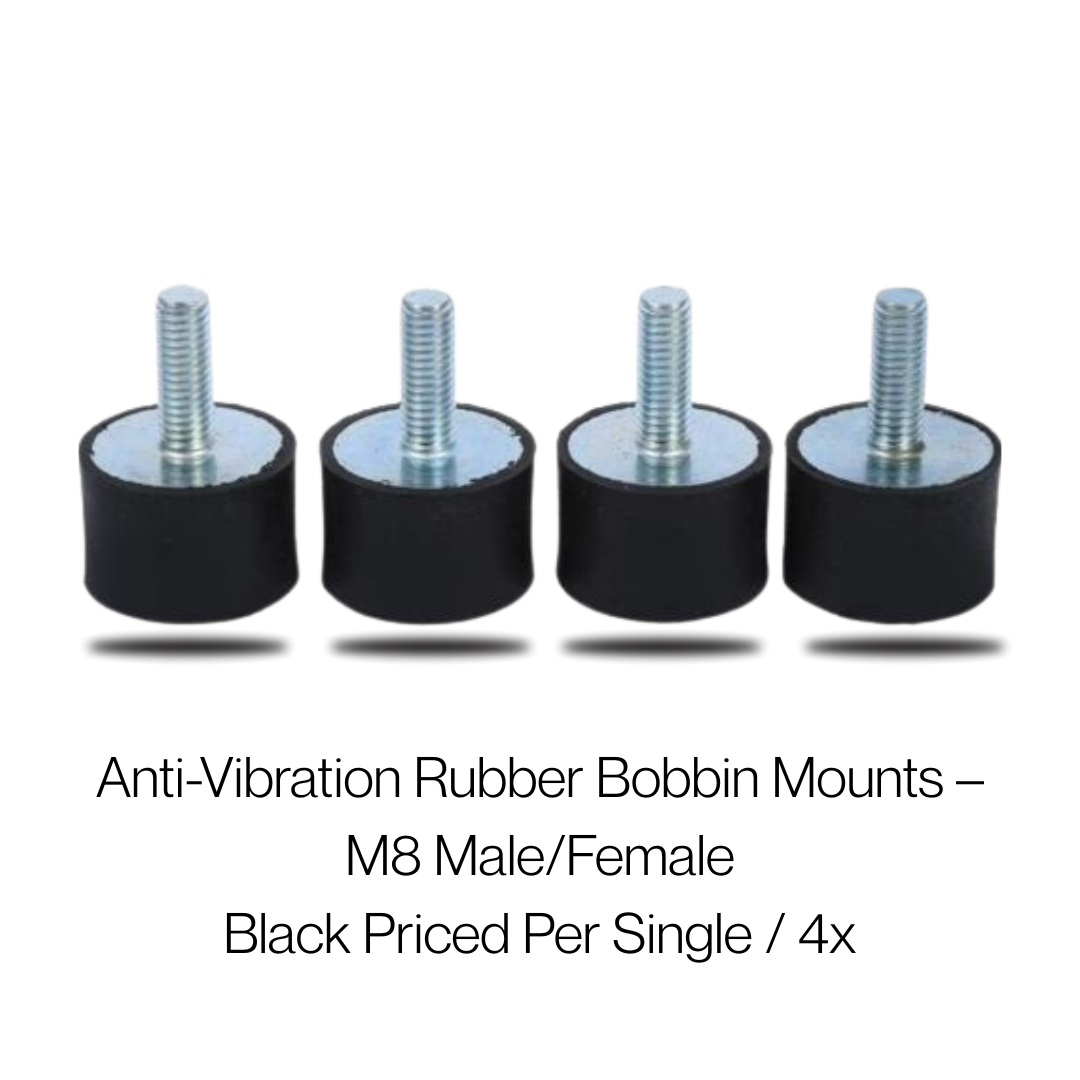

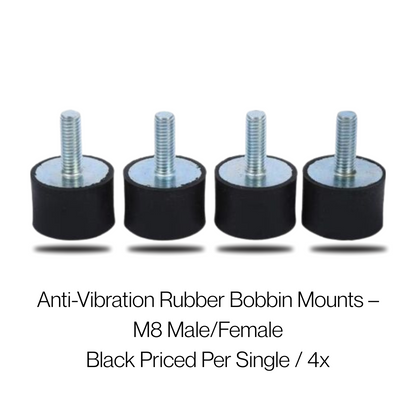

M8 Anti-Vibration Mount Male-Female – 25mm x 25mm Rubber Bobbin Mount (55 Shore)
M8 Anti-Vibration Mount Male-Female – 25mm x 25mm Rubber Bobbin Mount (55 Shore)
- Singles, Pack of 4, 25 or 50
- 25mm x 25mm M8 Male to Female
- natural rubber (55 Shore A) with BZP steel threads and plates
- Small Parcel Delivery applies to all Pack Sizes
Delivery Information: Small Parcel Delivery applies to all Pack Sizes
Impossible de charger la disponibilité du service de retrait
Reduce vibration, noise and equipment wear with our durable M8 rubber anti-vibration mounts. Available individually or in packs of 4, 25 and 50.
Designed to absorb shock and minimise vibration transfer, these rubber mounts are ideal for machinery, motors, pumps, compressors and a wide range of industrial, automotive and marine applications.
Manufactured from high-quality natural rubber (55 Shore A) with BZP steel threads and plates, they provide reliable vibration isolation for compatible equipment and mounting applications.
Choose Your Pack Size
Whether you're replacing a single mount or purchasing for a larger installation, we offer four convenient pack sizes.
| Pack Size | Ideal For |
|---|---|
| Single Mount | Individual replacements |
| Pack of 4 | Smaller machinery installations |
| Pack of 25 | Workshops, maintenance and engineering projects |
| Pack of 50 | Bulk requirements and regular maintenance |
More Mounts, Same Postage Charge!
The postage charge is the same whether you order 1, 4, 25 or 50 mounts!
If you need multiple mounts, purchasing them together allows you to make better use of the delivery cost.
Simply select your required pack size before adding to your basket.
The same postage charge applies to these pack options under equivalent delivery conditions. The actual delivery charge is shown at checkout.
Product Specifications
| Specification | Details |
|---|---|
| Product | Anti-Vibration Rubber Bobbin Mount |
| Thread Size | M8 |
| Thread Configuration | Male / Female |
| Rubber Diameter | 25mm |
| Rubber Height | 25mm |
| Rubber Material | Natural Rubber |
| Rubber Hardness | 55 Shore A |
| Metal Components | BZP Steel |
| Temperature Range | -30°C to +80°C |
| Available Pack Sizes | 1, 4, 25 or 50 |
Please note: The 25mm height refers to the rubber body, excluding the projecting male thread.
Performance & Load Ratings
| Performance Specification | Rating |
|---|---|
| Maximum Compressive Load (MCL) | 31kg |
| Deflection at MCL | 3.2mm |
| Maximum Shear Load (MSL) | 13.5kg |
| Deflection at MSL | 6.3mm |
These ratings are for an individual mount. Correct selection depends on the equipment load, number of mounts, mounting arrangement and operating conditions.
Key Features & Benefits
Vibration Reduction
Helps absorb and isolate vibration generated by machinery and equipment.
Noise Reduction
Reduces the transfer of vibration that can contribute to unwanted operational noise.
Durable Natural Rubber
Manufactured from 55 Shore A natural rubber, providing a balance of flexibility and support.
BZP Steel Fixings
Zinc-plated steel components provide corrosion resistance for suitable operating environments.
Machinery Protection
Helps reduce vibration transfer to supporting structures and components.
Flexible Ordering Options
Available in convenient pack sizes to suit individual repairs, larger installations and regular maintenance requirements.
Suitable Applications
Our M8 anti-vibration mounts are suitable for compatible applications including:
-
Pumps and compressors
-
Electric motors and generators
-
HVAC equipment
-
Fans and ventilation systems
-
Industrial machinery
-
Workshop equipment
-
Automotive equipment
-
Marine equipment
-
Engineering and fabrication projects
Choosing the Correct Mount
Before purchasing, please check:
-
Thread size: M8 male/female.
-
Dimensions: 25mm diameter × 25mm rubber body height.
-
Load requirements: Ensure the mount is suitable for the equipment weight and loading direction.
-
Mounting arrangement: Consider the number of mounts required and how the load will be distributed.
-
Operating conditions: Check temperature, environment and vibration requirements.
If you're unsure which mount is suitable for your application, please contact us before ordering.
Ordering Information
Available pack sizes:
-
1 × M8 Anti-Vibration Mount
-
4 × M8 Anti-Vibration Mounts
-
25 × M8 Anti-Vibration Mounts
-
50 × M8 Anti-Vibration Mounts
All options contain the same 25mm × 25mm M8 male/female mount.
Please select your preferred pack size from the options above.
Other sizes, thread configurations and mounting options are also available. Contact us for further information.
Delivery
Orders are carefully packaged and dispatched using an appropriate postal or carrier service.
All four pack sizes qualify for the same postage charge under equivalent delivery conditions, allowing you to order additional mounts without increasing the delivery cost for that pack option.
The applicable delivery charge will be displayed at checkout.
Why Choose The Seal Extrusion Company?
We supply quality rubber components, anti-vibration mounts, sealing products and specialist extrusions for industrial, automotive, marine and general engineering applications.
Whether you need one replacement mount or a larger quantity for a project, we're here to help you find the right product.
The Seal Extrusion Company – Quality rubber components and vibration isolation solutions.
