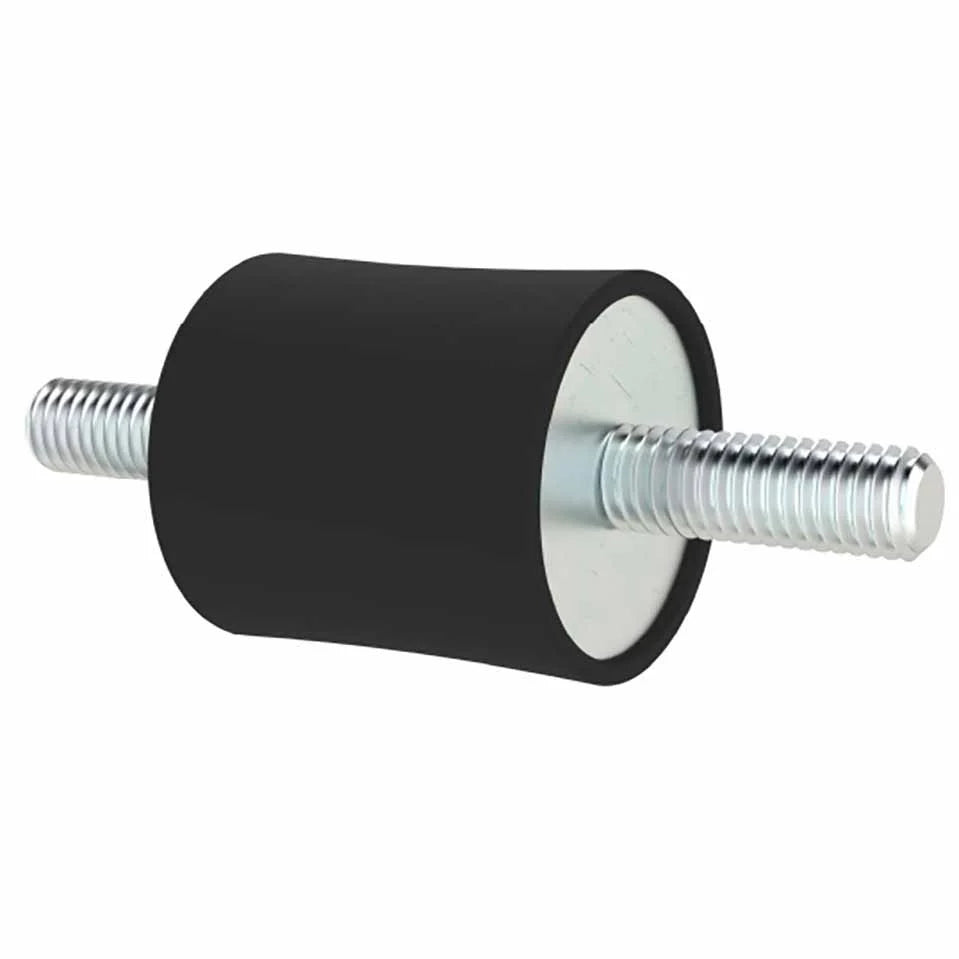

M10 Anti-Vibration Mount Male-Male – 50mm x 40mm Rubber Bobbin Mount (55 Shore)

Reduce vibration, noise, and mechanical stress with this M10 anti-vibration mount (male-male thread). Designed for industrial, automotive, and marine applications, this rubber bobbin mount provides reliable shock absorption and vibration isolation to protect machinery and improve performance.

Manufactured from high-quality natural rubber (55 Shore A) with durable BZP steel threads, this mount is built for long-lasting use in demanding environments.

🔧 Key Features

• Thread Size: M10
• Thread Type: Male-Male
• Diameter: 50mm
• Height: 40mm
• Material: Natural rubber (black) + BZP steel
• Hardness: 55 Shore A
• Temperature Range: -30°C to +80°C
• Excellent vibration & noise reduction
• Heavy-duty, durable construction

Performance Definitions

• MCL (Max Compressive Load): Maximum load the mount can تحمل under compression (kg)
• DMCL (Deflection @ MCL): Movement at maximum compressive load (mm)
• MSL (Max Shear Load): Maximum load the mount can withstand in shear (kg)
• DMSL (Deflection @ MSL): Movement at maximum shear load (mm)

Applications

Ideal for:

• Industrial machinery & plant equipment
• Generators, compressors & pumps
• HVAC systems, motors & fans
• Automotive & marine installations
• Engineering and workshop use

Benefits

• Reduces vibration, shock, and noise
• Protects equipment from wear and fatigue
• Improves machine stability and lifespan
• Suitable for heavy-duty applications

Ordering:

• • Sold per mount
  • Enter required quantity in the QTY box
  • Bulk pricing available on request
